Retail Security

CCTV Point of Sale and Scale Integration

CCTV POS (point of sale) and scale integration involve linking a till register or a product scale via the network to your CCTV recording device.

Updated July 20223 min readCommercial & Industrial Focus

What is POS integration on CCTV Cameras?

CCTV POS (point of sale) and scale integration involve linking a till register or a product scale via the network to your CCTV recording device. Once your CCTV camera is connected to your POS system it will be able to record the area around your register and display all scanned/weighed items on the recording for later review or analysis.

Most businesses within the retail or hospitality industry use point-of-sale systems which become the key area for money transactions. This makes POS systems a high-risk zone for fraud or theft within the business. The CCTV cameras not only watch the employees and customers but also records real-time transactions which are overlaid on the security footage to prevent employee theft, refund scams, incorrect scanning and robbery from going undetected. The cameras are able to assist with any errors that may occur intentionally or unintentionally and record them with their data for later inspection. POS text overlay via CCTV will also make it easier to review information or data in the event of external or internal theft.

How the POS system is connected to the CCTV cameras?

POS data integrated systems use developed technology that collects data from the scale or till register and send it to the CCTV security cameras to view all scanned and weighed products. The software assists with inconsistencies and errors that the cashier may make and backs it with recorded footage for a more straightforward investigation of POS-related disputes and enquiries. The POS data mining software integrated with installed CCTV cameras is one of the best products on the market because of its data mining capabilities. Users are able to easily search for specific events or transactions and view all collected data from the purchase.

How will having a POS Integrated CCTV Camera System Benefit your business?

While CCTV cameras and security systems are a great proactive solution to securing your business and premises, it’s the hidden actions of employees and customers that can often go unnoticed. POS integrated cameras are added security measures to protect your business better and ensure that no one is cheating the system at the register or when a transaction is in process.

Types of till theft that POS integrated cameras can expose in the workplace:

Sweethearting – The employee at the till works with the customer to ring up the item at a lower price or at no cost at all. The customer is able to walk away by paying a discounted price or not paying at all for the product/s. The text overlay on the recorded CCTV footage displays the product and how much it was rung up for, making it easier to identify whether the customer paid the correct amount for each item.

Returns and Refunds – An item or product is taken from the shelf in-store and presented to the cash register employee. The employee confirms the refund and either hands the cash to the accomplice or keeps it for themselves.

Substitute Scanning – The Employee will pass two items through the barcode scanner at the same time so that only one is scanned and the other isn’t paid for. The CCTV cameras will display how many items were really scanned and paid for. This enables an easier investigation with proof of the transaction.

Integrating your POS system with your CCTV system not only adds another level of protection but also makes inventory tracking easier by collecting the data of all sales and returns and storing it with the CCTV footage. This data collection makes stock loss management a smoother
and better-tracked operation.

If you are looking for new ways to improve your property security or are interested in integrating your POS system with your CCTV cameras contact us.

For more information on our other security systems click here.

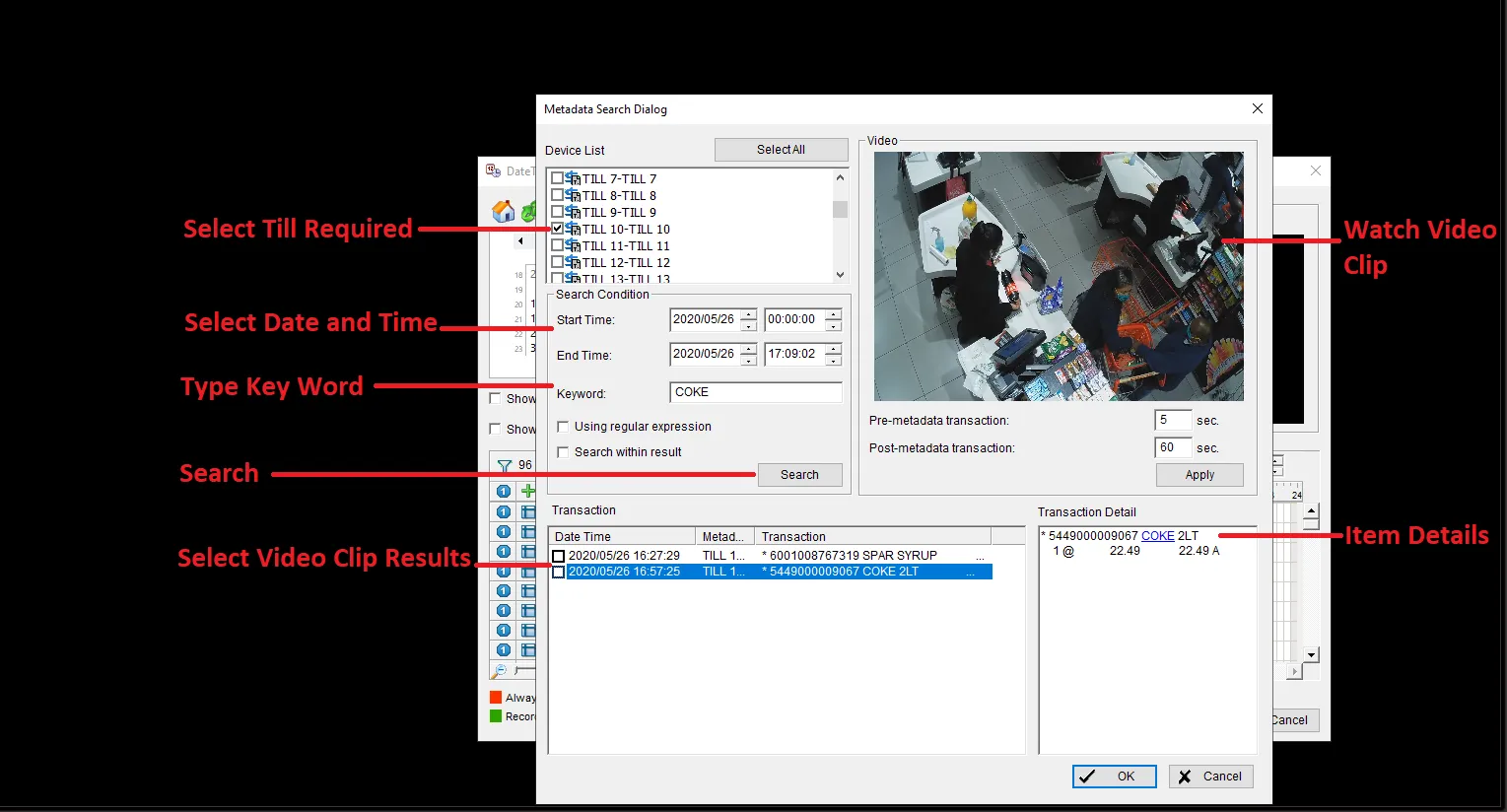

Till overlay data mining screen: choose the till, date and keyword, then watch the matching video clip with item details

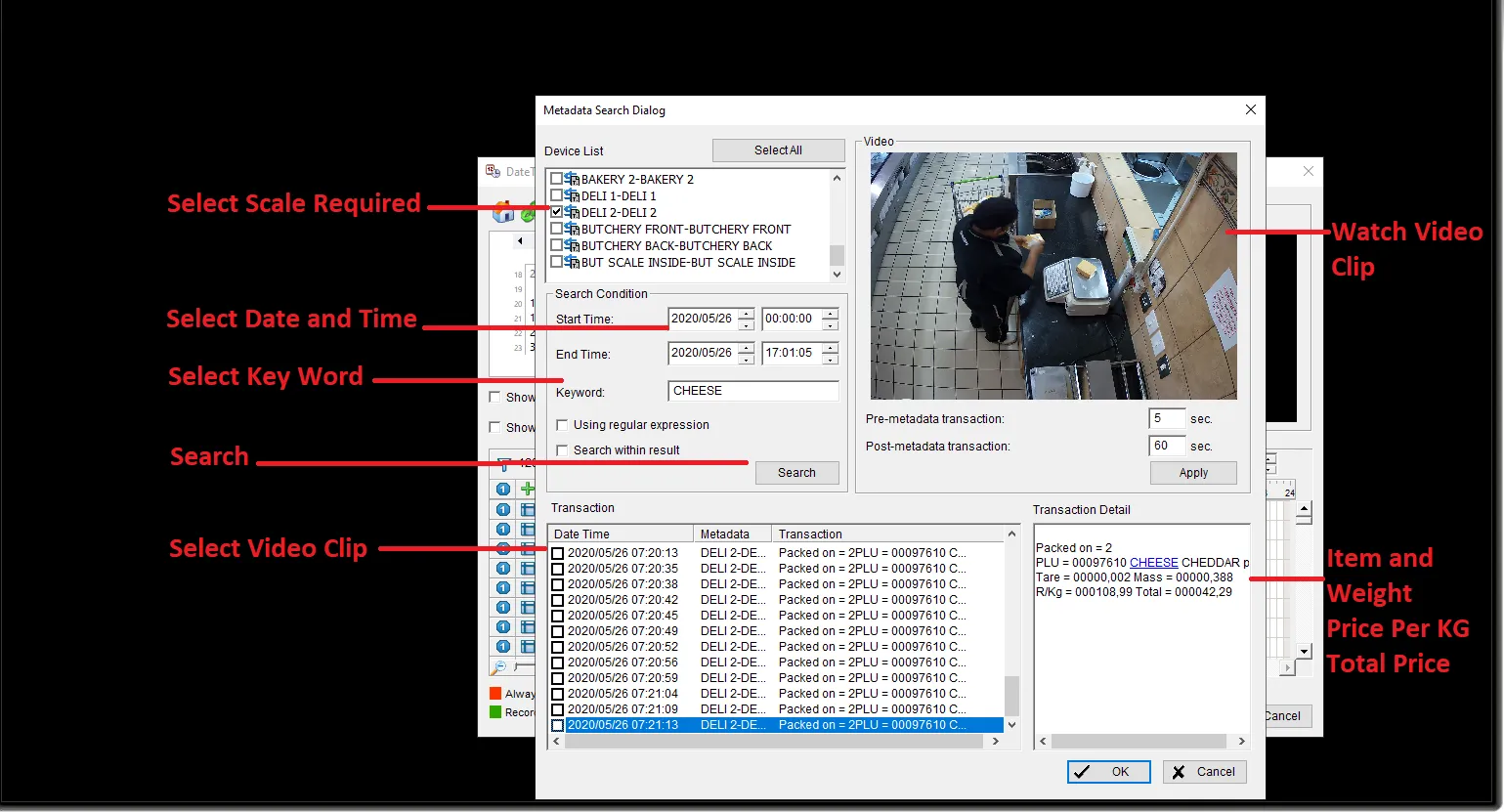

Scale overlay data mining screen: search scale transactions by date and keyword and watch the clip with item weight and price

Point-of-sale text overlay integration: till transactions shown over CCTV footage so you can watch items scanned live and review them later

59+
Years protecting South African business
50,000+
Cameras deployed nationwide
7,000+
Commercial and industrial clients since 1967
24/7
In-house monitoring control room

Want a system designed around your site?

We design every system around your premises, risks and operations, starting with a free on-site assessment.

Request a Free Site AssessmentCall 0861 002 288

Ready to put this to work on your site?

Book a free site assessment. We'll look at your premises, recommend the right system for each area and show you where it will make the biggest difference, with no obligation.

Request a Free Site AssessmentSpeak to a Security Specialist

Frequently Asked Questions

Select a category below to browse answers for businesses across South Africa

Choose a category above to view answers.

  • CCTV point of sale and scale integration connects your till or scale to your CCTV recording device via the network. Every item scanned at the point of sale, and every item weighed on a scale, is displayed as a text overlay on the live video feed and on the recorded footage for later review and analysis.

  • Sweethearting is when a cashier deliberately fails to scan or under-charges for items, often for a friend or accomplice. Because scanned items are overlaid on the video in real time, an item that passes the till without appearing on the overlay is immediately visible, both live and when reviewed later.

  • Yes. Footage can be extracted and used as evidence for disciplinary action, investigations or insurance claims. It can also be reviewed by our CCTV reviewing centre, with reports and video clips generated for you.

  • Text overlay burns the till or scale data directly onto the video image, so scanned items and totals are visible in the recording itself. Transaction matching instead links structured till data to timestamped video clips behind the scenes, enabling more advanced search, reporting, and the ability to link multiple camera angles to a single transaction.

  • IP CCTV offers higher resolution (2-5 Megapixel), smart image quality in difficult lighting, faster data mining search and easier expansion, at a higher equipment cost. HD CCTV has a lower equipment cost but lower image resolution, limited data mining search and limited expansion.

  • Yes. Overlaying scale readings onto video footage lets you verify the correct price per kilogram was charged, and gives real-time visual verification of weighbridge activity, reducing human error and making it far harder to manipulate a weight reading undetected.

  • Items that are not scanned will not appear on the overlaid video feed, making sweethearting and skipped items visible immediately, both live and on stored footage. Reviewers can also data mine footage by word to quickly find suspicious transactions rather than watching hours of raw video.

  • Commonly monitored exceptions include no sales, voids, returns, refunds, cancels, pay-outs, and unusually low or high value sales, each of which can trigger an on-screen flag or link directly to the matching video clip for fast verification. This pairs well with our AI shoplift detection for full-store loss prevention.

  • Cost depends on the number of tills or scales, whether IP or HD CCTV is used, and any additional data mining or reviewing services required. A free on-site assessment gives an accurate, tailored quote for your POS and scale integration.

  • Yes. CCTV Security Surveillance has branches in Gauteng, KwaZulu-Natal, Western Cape and Eastern Cape and designs, installs and supports CCTV point of sale and scale integration for businesses across all nine provinces of South Africa.

    See how POS integration fits into retail security and video analytics, or request a free site assessment.
